Ready to play on your smart factory?
Are you looking for an inspection software with high accuracy, compatible with all the scanners and robots available on the market, that takes control of robot trajectories and really easy to handle?
Look no further, you have found it!
About Silma X4 i-Robot technology
The Metrolog X4 i-Robot technology is suitable for all industrial robots; it provides a production-ready metrology solution that is accurate, reliable and flexible.
Metrolog X4 i-Robot is perfectly suited for all applications requiring flexibility and productivity while providing high metrological accuracy.
- Measuring accuracy fully independent of robot’s positioning precision.
- Robot movements perfectly
synchronized with measurement. - Robot trajectory entirely controlled by Metrolog X4 i-Robot part program.
High speed acquisition
The Metrolog X4 i-Robot measuring system is based on a high speed acquisition laser scanner or a touch probe attached to a multi-axis robot wrist. The robot, of any type or brand, without specific accuracy, behaves as a simple tool holder.

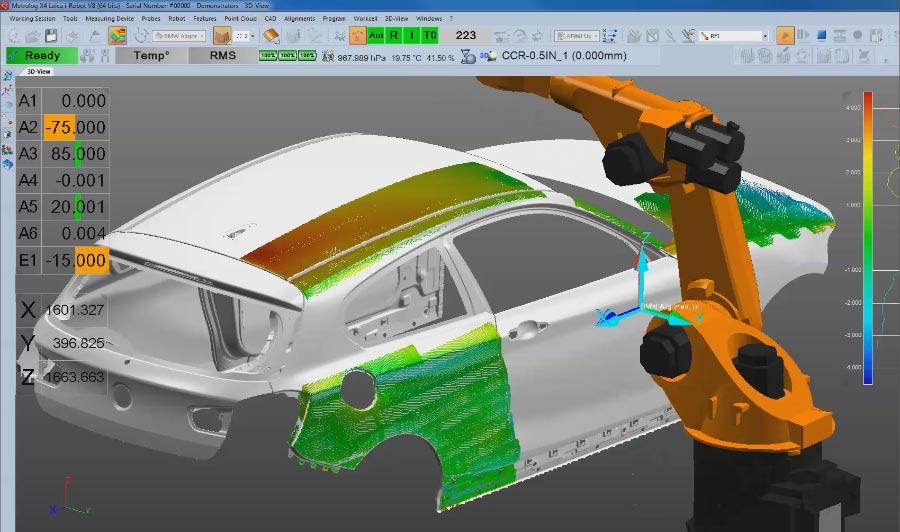

The measuring accuracy is provided, either by a separate tracking camera following the laser sensor box equipped with positioning LEDs, or by a laser tracker system.
The main applications can be found in the automotive, aerospace and their sub-contractors, for the in-line manufacturing metrology control.

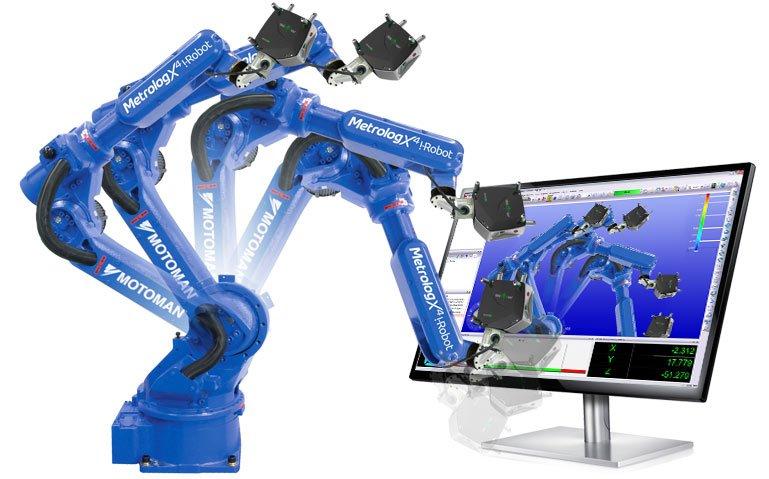

Synchronized movements
Robot movements synchronized with measurement
From the knowledge, experience and its solid foundation, a new area opens into the 3D measurement world: Inline Robot-based CMM style inspection
Metrolog drive robot
Full control of robot trajectories straight from Metrolog.
The Metrolog X4 i-Robot technology is suitable for all industrial robots; it provides a production-ready metrology solution accurate, reliable and flexible. Metrolog X4 i-Robot is perfectly suited for all applications requiring flexibility and productivity while providing high metrological accuracy.

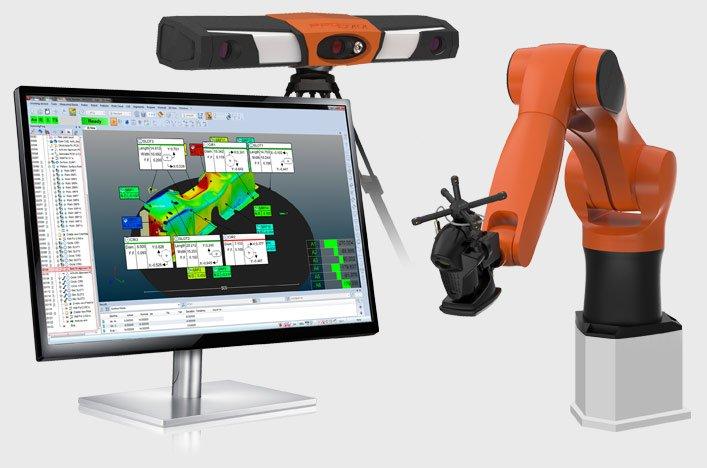

Flexible solution
Flexible with any measurement system.
The Metrolog X4 i-Robot measuring system is based on a high speed acquisition laser scanner or touch probes attached to a multi-axes robot wrist.
The robot, of any type or brand, without specific accuracy, behaves as a simple tool holder. The measuring accuracy is provided, either by a separate tracking camera following the laser sensor box equipped with positioning LEDs, or by a laser tracker system.

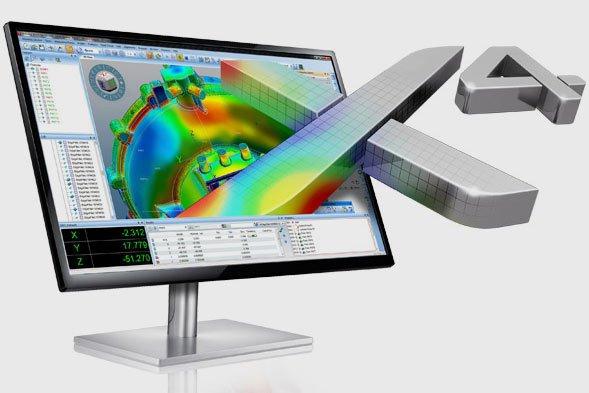

Full Metrolog capabilities inside!
The main applications can be found in the automotive, aerospace and their sub-contractors for the manufacturing lines metrology control.
EASY TO ENABLING ROBOTIC INSPECTION
IN THE SHOP FLOOR

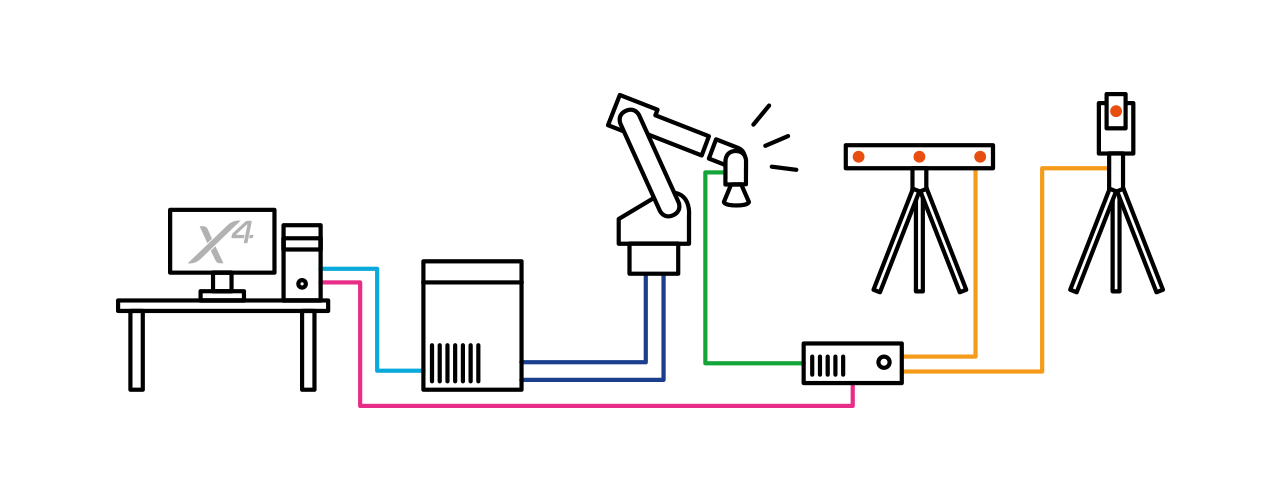

How it works?
One software only
Handle robot motions and inspections commands in one single part programs.
Touch or Scan?
Measure all your parts with a Touch or Scan Robot inspection cell.
Tracking
Tracked in position with a laser tracker or a photogrammetric station.
Inline ready
May be used as a stand alone station or a fully integrated solution to assembly lines.
Fast and accurate
Quick control of all geometrical characteristics of the part compared based on CAD definition.
Additional freedom
The solution can integrate additional Robot cell axis such as 7th axis rail or rotary table…
Simultaneous measurement
Solution adaptable to synchronized multiple robots in the same coordinate system.
Ergonomic design
Enabling an intuitive all in one robot based inspection easy to handle and program.
Easy way to robotize your 3D inspection
ACCURACY
Measuring accuracy fully independent of robot’s positioning precision
SYNCHRONIZED
Robot movements perfectly synchronized with measurement
CONTROLED
Robot trajectory entirely controlled by Metrolog X4 part program
Major robots brand supported
KUKA
FANUC
STÄUBLI
YASKAWA
ABB
UNIVERSAL ROBOTS
Metrolog X4 i-Robot is compatible with all major 3D measuring equipment brands.
Flexibility & Productivity serving
metrology within the production line
Robotic inspection Made Easy with Metrolog X4 i-Robot
Value added app’s to maximize your productivity
i-Viewer
Free viewer app to share your inspection files with customers and partners.
i-Remote
Mobile app that gives you the freedom to measure away from your computer.
i-Supervision
Revolutionary approach to delivering live inspection results to the shop floor.
i-Holo
Augmented reality inspection solution built on Microsoft HoloLens.
